Overview:
Classify:
Ac Motor Production
Keyword:
Product
Product Description
Slot Insertion Machine
Stack Thickness:40~220mm OD:<300mm ID:>45mm Hemming Height:4~8mm Paper Thickness:0.2~0.5mm Feeding Depth:15~100mm CT:1~2.5s/Slot Air Pressure:0.5~0.8MPA
Coil Winding Machine
Winding Method: Flyer Winding RPM:2000~3000 Muti Wire Winding Available Flyer Diameter:180~380mm Wire Dia:0.17~1.2mm Wire:Copper/Aluminum
Coil Insertion Machine
Stack Thickness:30~110mm OD:<150MM ID:>45MM Wire Adaption:0.2~1.2mm Customized Available
Forming Machine
Initial Forming, Middle Forming Final forming process include ID:30MM OD:100MM Air Pressure:0.6~0.8MPA Customized Available
Lacing Machine
ID:>25MM OD<160MM Stack Thickness:8~160MM Coil Height:15~30mm CT:24 SLOT<10S Lacing Wire cut:Auto

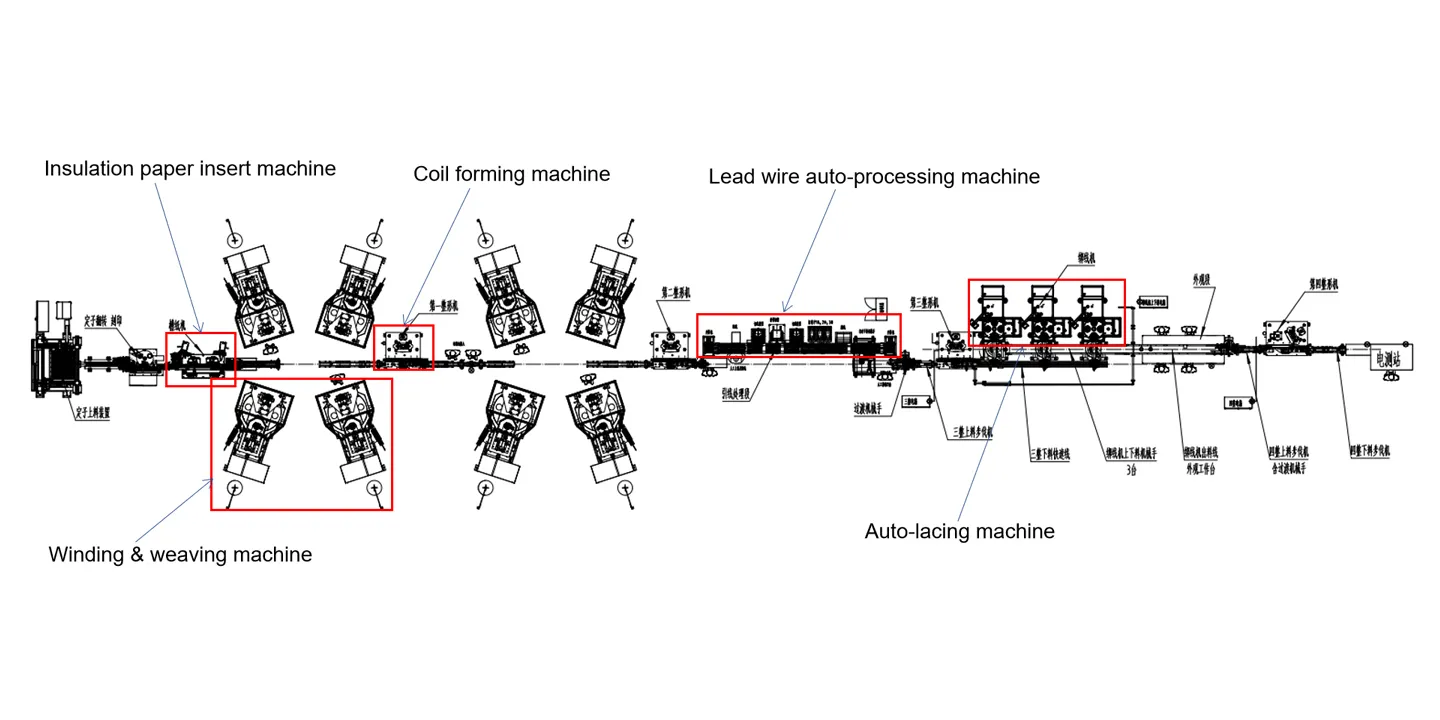

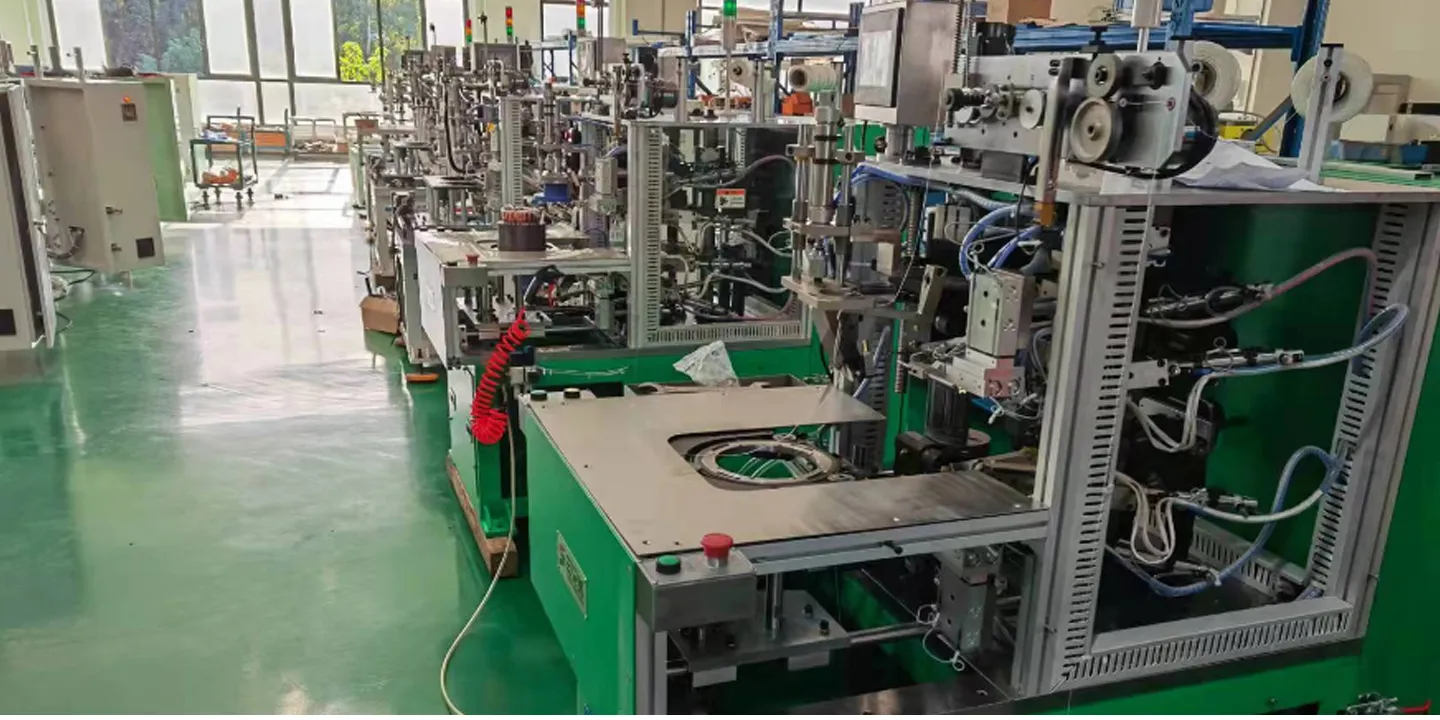

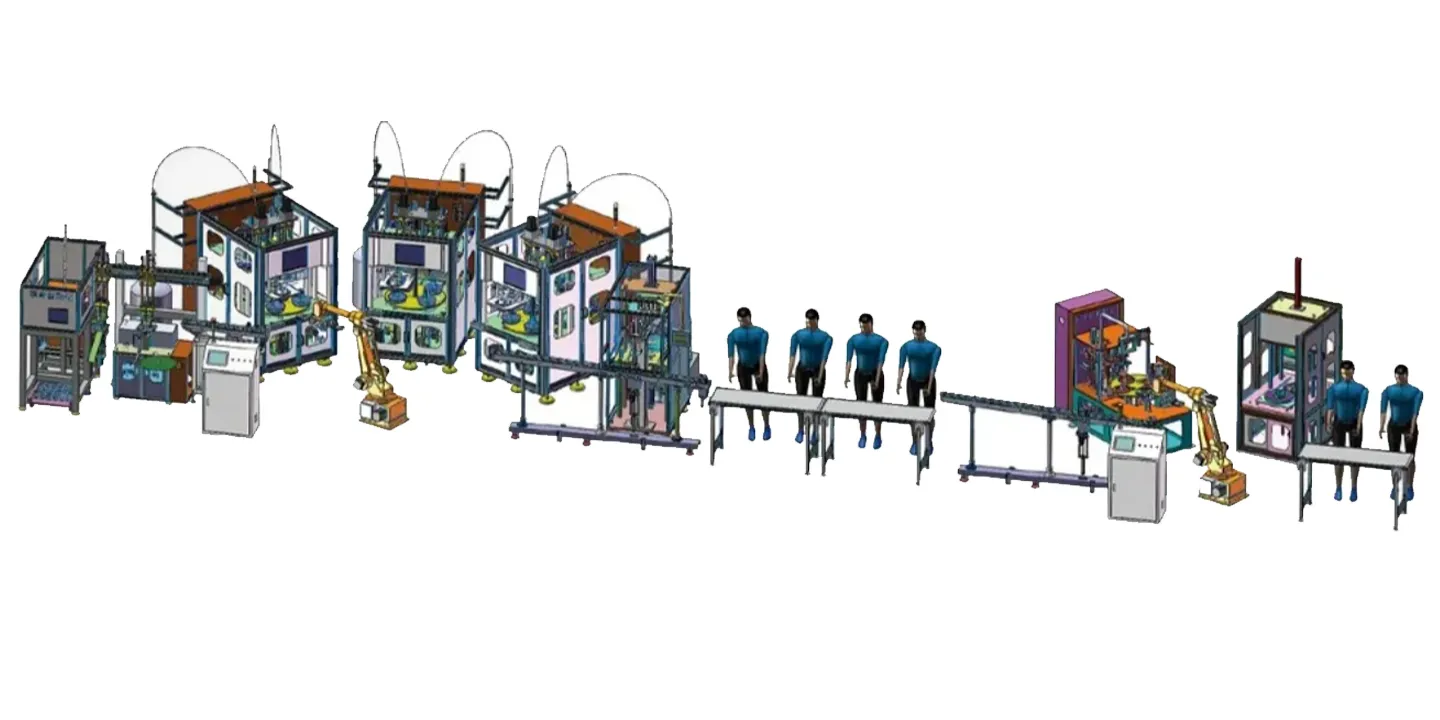

Full range machines for AC motor production
20 years experience into the motor production.Machine being adapted by GMCC, HIGHLY, GODREJ,MISHUBISHI THAI CORP, NIDEC...
