Monte-Bianco

Performance Table

NdFeB Smco Ferrite

Category	Grade	SimplifiedGrade	Br		Hcb		Hcj		(BH)max		TwL/D=0.7	Hk/Hcj


			T	kGs	kA/m	kOe	kA/m	kOe	kJ/㎡	MGOe	℃	%
N	S-NdFeB-430/88	N54	1.45-1.48	14.5-14.8	≥836	≥10.5	≥875	≥11	406-438	51-55	80	≥95
	S-NdFeB-415/96	N52	1.42-1.45	14.2-14.5	≥836	≥10.5	≥960	≥12	390-422	49-53	80	≥95
	S-NdFeB-400/96	N50	1.39-1.42	13.9-14.2	≥836	≥10.5	≥960	≥12	374-406	47-51	80	≥95
	S-NdFeB-380/96	N48	1.37-13.9	13.7-13.9	≥836	≥10.5	≥960	≥12	358-390	45-49	80	≥95
	S-NdFeB-360/96	N45	1.33-1.37	13.3-13.7	≥860	≥10.8	≥960	≥12	342-366	43-46	80	≥95
	S-NdFeB-335/96	N42	1.29-1.33	12.9-13.3	≥860	≥10.8	≥960	≥12	318-342	40-43	80	≥95
	S-NdFeB-320/96	N40	1.26-1.29	12.6-12.9	≥860	≥10.8	≥960	≥12	302-326	38-41	80	≥95
	S-NdFeB-300/96	N38	1.23-1.26	12.3-12.6	≥860	≥10.8	≥960	≥12	287-310	36-39	80	≥95
	S-NdFeB-280/96	N35	1.18-1.23	11.8-12.3	≥860	≥10.8	≥960	≥12	263-287	33-36	80	≥95
	S-NdFeB-260/96	N33	1.14-1.18	11.4-11.8	≥816	≥10.3	≥960	≥12	247-263	31-33	80	≥95
	S-NdFeB-240/96	N30	1.08-1.14	10.8-11.4	≥756	≥9.5	≥960	≥12	223-247	28-31	80	≥95
M	S-NdFeB-430/104	N54M	1.45-1.48	14.5-14.8	≥995	≥12.5	≥1035	≥13	415-438	51-54	100	≥95
	S-NdFeB-415/104	N52M	1.42-1.45	14.2-14.5	≥995	≥12.5	≥1035	≥13	390-422	49-53	100	≥95
	S-NdFeB-400/111	N50M	1.39-1.42	13.9-14.2	≥1035	≥13.0	≥1114	≥14	374-406	47-51	100	≥95
	S-NdFeB-380/111	N48M	1.37-13.9	13.7-14.0	≥1012	≥12.7	≥1114	≥14	358-390	45-49	100	≥95
	S-NdFeB-360/111	N45M	1.33-1.37	13.3-13.7	≥971	≥12.2	≥1114	≥14	342-366	43-46	100	≥95
	S-NdFeB-335/111	N42M	1.29-1.33	12.9-13.3	≥938	≥11.8	≥1114	≥14	318-342	40-43	100	≥95
	S-NdFeB-320/111	N40M	1.26-1.29	12.6-12.9	≥910	≥11.4	≥1114	≥14	302-326	38-41	100	≥95
	S-NdFeB-300/111	N38M	1.23-1.26	12.3-12.6	≥876	≥11.0	≥1114	≥14	287-310	36-39	100	≥95
	S-NdFeB-280/111	N35M	1.18-1.23	11.8-12.3	≥860	≥10.8	≥1114	≥14	263-287	33-36	100	≥95
	S-NdFeB-260/111	N33M	1.14-1.18	11.4-11.8	≥816	≥10.3	≥1114	≥14	223-247	28-31	100	≥95
	S-NdFeB-240/111	N30M	1.08-1.14	10.8-11.4	≥756	≥9.5	≥1114	≥14	223-239	28-31	100	≥95
H	S-NdFeB-430/127	N54H	1.45-1.48	14.5-14.8	≥1070	≥13.4	≥1354	≥17	415-438	51-54	120	≥90
	S-NdFeB-415/127	N52H	1.42-1.45	14.2-14.5	≥1070	≥13.4	≥1354	≥17	389-415	49-53	120	≥90
	S-NdFeB-400/127	N50H	1.39-1.42	13.9-14.2	≥1035	≥13.0	≥1274	≥16	374-406	47-51	120	≥95
	S-NdFeB-380/127	N48H	1.37-13.9	13.7-14.0	≥1000	≥12.8	≥1274	≥16	358-390	45-49	120	≥95
	S-NdFeB-360/135	N45H	1.33-1.37	13.3-13.7	≥995	≥12.5	≥1353	≥17	342-366	43-46	120	≥95
	S-NdFeB-335/135	N42H	1.29-1.33	12.9-13.3	≥957	≥12.0	≥1353	≥17	318-342	40-43	120	≥95
	S-NdFeB-320/135	N40H	1.26-1.29	12.6-12.9	≥930	≥11.7	≥1353	≥17	302-326	38-41	120	≥95
	S-NdFeB-300/135	N38H	1.23-1.26	12.3-12.6	≥910	≥11.4	≥1353	≥17	287-310	36-39	120	≥95
	S-NdFeB-280/135	N35H	1.18-1.23	11.8-12.3	≥876	≥11.0	≥1353	≥17	263-287	33-36	120	≥95
	S-NdFeB-260/135	N33H	1.14-1.18	11.4-11.8	≥844	≥10.6	≥1353	≥17	247-271	31-34	120	≥95
	S-NdFeB-240/135	N30H	1.08-1.14	10.8-11.4	≥812	≥10.2	≥1353	≥17	223-239	28-31	120	≥95
SH	S-NdFeB-430/151	N54SH	1.45-1.48	14.5-14.8	>1106	≥13.9	≥1592	≥20	415-438	51-54	150	≥88
	S-NdFeB-415/151	N52SH	1.42-1.45	14.2-14.5	≥1067	≥13.4	≥1592	≥20	389-415	49-53	150	≥88
	S-NdFeB-400/151	N50SH	1.39-1.42	13.9-14.2	≥1051	≥12.9	≥1592	≥19	374-406	47-51	150	≥88
	S-NdFeB-380/151	N48SH	1.37-13.9	13.7-13.9	≥1035	≥12.8	>1512	≥20	358-390	45-49	150	≥90
	S-NdFeB-360/159	N45SH	1.33-1.37	13.3-13.7	>938	≥11.8	≥1592	≥20	342-366	43-46	150	≥90
	S-NdFeB-335/159	N42SH	1.29-1.33	12.9-13.3	>938	≥11.8	≥1592	≥20	318-342	40-43	150	≥90
	S-NdFeB-320/159	N40SH	1.26-1.29	12.6-12.9	≥912	≥11.5	≥1592	≥20	302-326	38-41	150	≥90
	S-NdFeB-300/159	N38SH	1.23-1.26	12.3-12.6	≥886	≥11.1	≥1592	≥20	287-310	36-39	150	≥90
	S-NdFeB-280/159	N35SH	1.18-1.23	11.8-12.3	≥876	≥11.0	≥1592	≥20	263-287	33-36	150	≥90
	S-NdFeB-260/159	N33SH	1.14-1.18	11.4-11.8	≥836	≥10.5	≥1592	≥20	247-271	31-34	150	≥90
	S-NdFeB-240/159	N30SH	1.08-1.14	10.8-11.4	≥756	≥9.5	≥1592	≥20	223-239	28-31	150	≥90
UH	S-NdFeB-415/191	1.42-1.45	1.42-1.45	14.2-14.5	≥1067	≥13.4	≥1990	≥25	389-415	49-52	180	≥86
	S-NdFeB-400/191	1.39-1.42	1.39-1.42	13.9-14.2	≥1051	≥12.9	≥1990	≥25	374-406	47-51	180	≥86
	S-NdFeB-380/191	1.37-13.9	1.37-13.9	13.7-14.0	≥1000	≥12.8	≥1990	≥25	358-382	45-49	180	≥86
	S-NdFeB-360/191	1.33-1.37	1.33-1.37	13.3-13.7	≥976	≥12.2	≥1911	≥24	342-366	43-46	180	≥90
	S-NdFeB-335/199	1.29-1.33	1.29-1.33	12.9-13.3	≥938	≥11.8	≥1990	≥25	318-342	40-43	180	≥90
	S-NdFeB-320/199	1.26-1.29	1.26-1.29	12.6-12.9	≥912	≥11.5	≥1990	≥25	302-326	38-41	180	≥90
	S-NdFeB-300/199	1.23-1.26	1.23-1.26	12.3-12.6	≥886	≥11.1	≥1990	≥25	287-310	36-39	180	≥90
	S-NdFeB-280/199	1.18-1.23	1.18-1.23	11.8-12.3	≥845	≥10.6	≥1990	≥25	263-287	33-36	180	≥90
	S-NdFeB-260/199	1.14-1.18	1.14-1.18	11.4-11.8	≥816	≥10.3	≥1990	≥25	247-271	31-34	180	≥90
	S-NdFeB-240/199	1.08-1.14	1.08-1.14	10.8-11.4	≥756	≥9.5	≥1990	≥25	223-247	28-31	180	≥90
	S-NdFeB-380/231	N48EH	1.37-1.40	13.7-14.0	≥1000	≥12.8	≥2308	≥30	358-382	45-49	200	≥86
	S-NdFeB-360/231	N45EH	1.32-1.37	13.2-13.7	≥976	≥12.2	≥2308	≥30	342-358	42-45	200	≥86
	S-NdFeB-335/231	N42EH	1.28-1.32	12.8-13.2	≥971	≥12.2	≥2308	≥29	318-342	39-43	200	≥90
	S-NdFeB-320/239	N40EH	1.25-1.28	12.5-12.8	≥947	≥11.9	≥2308	≥30	303-326	37-41	200	≥90
EH	S-NdFeB-300/239	N38EH	1.22-1.25	12.2-12.5	≥923	≥11.6	≥2308	≥30	287-303	35-39	200	≥90
	S-NdFeB-280/239	N35EH	1.18-1.22	11.8-12.2	≥883	≥11.1	≥2308	≥30	263-287	33-36	200	≥90
	S-NdFeB-260/239	N33EH	1.14-1.18	11.4-11.8	≥816	≥10.3	≥2308	≥30	247-263	31-34	200	≥90
	S-NdFeB-240/239	N30EH	1.08-1.14	10.8-11.4	≥756	≥9.5	≥2308	≥30	223-247	28-31	200	≥90
	S-NdFeB-220/239	N28EH	1.05-1.08	10.5-10.8	≥756	≥9.5	≥2308	≥30	207-231	26-29	200	≥90
TH	S-NdFeB-335/263	N42TH	1.25-1.29	12.6-12.9	≥971	≥12.2	≥2786	≥35	318-342	40-43	220	≥86
	S-NdFeB-320/263	N40TH	1.25-1.29	12.6-12.9	≥939	≥11.8	≥2786	≥35	303-326	36-41	220	≥86
	S-NdFeB-300/279	N38TH	1.22-1.25	12.2-12.5	≥923	≥11.6	≥2786	≥35	279-310	35-39	220	≥90
	S-NdFeB-280/279	N35TH	1.18-1.22	11.8-12.2	≥845	≥10.6	≥2786	≥35	263-287	33-36	220	≥90
	S-NdFeB-260/279	N33TH	1.14-1.18	11.4-11.8	≥816	≥10.2	≥2786	≥35	247-271	31-34	220	≥90
	S-NdFeB-240/279	N30TH	1.08-1.14	10.8-11.4	≥804	≥10.1	≥2786	≥35	223-247	28-31	220	≥90
	S-NdFeB-220/279	N28TH	1.05-1.08	10.5-10.8	≥756	≥9.5	≥2786	≥35	207-231	26-29	220	≥90

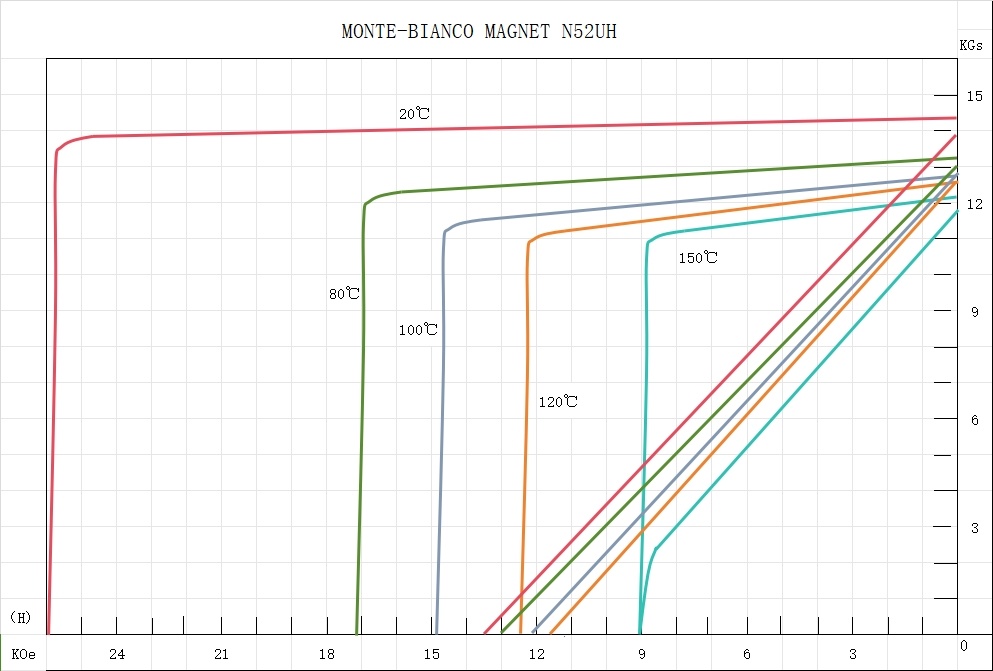

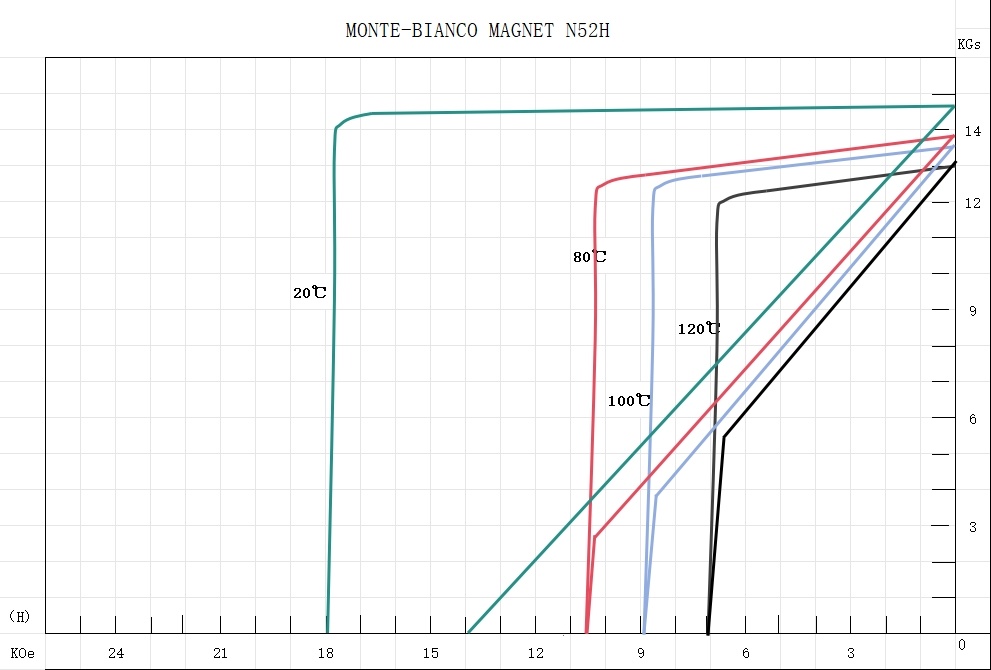

Demagnetization Curve

N52H

N52UH

N54

N40AH

< 1 2 > 跳转到页

Material	Grade	Energy Product (BH) max		Residual Induction Br(min)		Coercive Force Hcb (min)		Intrinsic Coercive Force Hcj (min)		Density D	Rev temp Coeff a (Br)	Curie empTC	Max Workinglemp Tw



		KJ/m3	MGOe	T	kGs	kA/m	kOe	kAm	k0e	g/cm³	%/℃	℃	℃
SmCo5 And Sm(Pr)Co	YX-18	127-159	16-20	0.82-0.92	8.2~9.2	639-756	8.0-9.5	1194-1751	15.0-22.0	8.2-8.3	-0.04	≥740	250
	YX-20	143-175	18-22	0.87-0.95	8.7~9.5	639-756	8.0-9.5	1194-1751	15.0-22.0
	YX-22	159-191	20-24	0.93-1.0	9.3-10.0	660-772	8.3~9.7	1194-1751	15.0-22.0
	YX-24	175-207	22-26	0.96-1.04	9.6-10.4	660-780	8.3~9.8	1194-1751	15.0-22.0
Sm2Co17	YXG-24M	175-207	22-26	0.96-1.04	9.6-10.4	318-772	4.0-9.7	398-955	5.0-12.0
	YXG-24	175-207	22-26	0.96-1.04	9.6-10.4	660-780	8.3~9.8	≥1751	22
	YXG-24H	175-207	22-26	0.96-1.04	9.6-10.4	660-780	8.3~9.8	≥1990	25
	YXG-26M	191-223	25-28	1.0-1.07	10.0-10.7	318-796	4.0-10.0	398-955	5.0-12.0	8.2-8.4	-0.03	≥800	350
	YXG-26	191-223	25-28	1.0-1.07	10.0-10.7	677-820	8.5-10.3	≥1751	22
	YXG-26H	191-223	25-28	1.0-1.07	10.0-10.7	677-820	8.5-10.3	≥1990	25
	YXG-28M	207-239	26-30	1.04-1.10	10.4-11.0	318-796	4.0-10.0	398-955	5.0-12.0
	YXG-28	207-239	26-30	1.04-1.10	10.4-11.0	677-820	8.5-10.3	≥1751	≥22.0
	YXG-28H	207-239	26-30	1.04-1.10	10.4-11.0	677-820	8.5-10.3	≥1990	≥25.0
	YXG-30M	223-247	28-31	1.07-1.12	10.7-11.2	318-796	4.0-10.0	398-955	5.0-12.0
	YXG-30	223-247	28-31	1.07-1.12	0.7-11.2	677-820	8.5-10.3	≥1751	≥22.0
	YXG-32M	238-262	29-32	1.09-1.15	10.9-11.5	318-796	4.0-10.0	398-955	5.0-12.0
	YXG-S32	238-262	29-32	1.09-1.15	10.9-11.5	677-820	8.5-10.3	≥1592	≥20.0
Low Temp Coef Sm2Co17	YX-22LT	159-191	20-24	0.93-1.0	9.3-10.0	677-756	8.5~9.5	≥1194	≥15.0	8.2-8.4	-0.01	≥850	350
	YX-24LT	175-207	22-26	0.96-1.04	9.6-10.4	677-756	8.5~9.5	≥1194	≥15.0	8.2-8.4	-0.01	≥850	350
	YX-26LT	191-223	25-28	1.0-1.07	10.0-10.7	677-812	8.5-10.2	≥1433	≥18.0	8.2-8.4	-0.02	≥850	350

Demagnetization Curve

YXG-28H Demagnetization Curves at Different Temperatures

YXG-30H Demagnetization Curves at Different Temperatures

< 1 > 跳转到页

Performance	Residual Magnetism		Coercion		Endowed With Coercive Force		Maximum Energy Product
Performance	Br(mT)	Br(Gs)	bHc(kA/m)	bHe(0e)	iHc(kA/m)	iHc(0e)	(BH)max(Kj/m)	(BH)max(MG0e)
Y10	200-235	2000-2350	125-160	1570-2010	210-280	2640-3520	6.5-9.5	0.8-1.2
Y25	360-400	3600-4000	135-170	1700-2140	140-200	1760-2510	22.5-28.0	2.8-3.5
Y30	370-400	3700-4000	175-210	2200-2640	180-220	2260-2770	26.0-30.0	3.3-3.8
Y30BH	380-400	3800-4000	230-275	2890-3460	235-290	2950-3650	27.0-32.5	3.4-4.1
Y33	410-430	4100-4300	220-250	2770-3140	225-255	2830-3210	31.5-35.0	4.0-4.4
Y35	400-420	4000-4200	160-190	2010-2380	165-195	2070-2450	30.0-33.5	3.8-4.2
